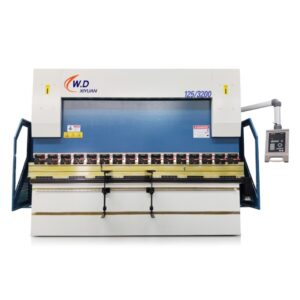

Wc67K series 125 ton hydraulic sheet metal CNC bending machine

WC67K 125 ton press brake 3.2m bending machine with E200P adopts CAN bus technology; servo control X, Y axis, built-in PLC; with machine tool motion control function, b this equipment can be freely matched according to the actual valve group timing, adjustable return distance, Self-diagnostics and real-time alarms.

Product Description

Brand: Anhui Xiyuan Machine       Origin: China
Shipping time: 30 days       Availability: 30 set/month

125 Ton Press Brake 3.2m Bending Machine Performance Brief

  •  A large floor boring and milling machine is used to process the bending machine frame.
  • Forging material shaft body, high rigidity, good elasticity, fine adjustment device, weak resistance to partial load. The large tempering furnace eliminates internal stress with good stability, high strength, and stable operation.
  • Users can customize mold segments 10,15,20,30,50,100,300 (cm).
  •  Wc67K Series Sheet Metal Bending Machine is an electro-hydraulic synchronous bending machine produced by the latest technology of Delem in the Netherlands. The user-friendly interface, unique shortcut method, and compact and cost-effective CNC system provide powerful and economical production solutions.
  •  Input the thickness and length parameters in the numerical control system, and the Wc67K Series Sheet Metal Bending Machine system will automatically compensate for the deflection.
  •  Ball screw and linear guide rail are adopted, driven by servo motor, and the rear gear positioning is fast and accurate.
  • The height of the stop finger is adjusted as a whole, and the height of the stop finger can be adjusted manually.
  •  Improve mold replacement speed and work efficiency.
  • Electro-hydraulic proportional servo synchronization ensures the accuracy of repeated operations. The stroke can be controlled at any point, the repetition accuracy reaches ±0.01, and the parallelism reaches 0.02.
  • The slider stroke (Y1, Y2), the rear gear (X, R, Z) is automatically controlled by a computer, the rear gear adopts a ball screw linear guide rail, and the repeat accuracy is high.
  • The Wc67K Series Sheet Metal Bending Machine can control multi-axis synchronous CNC machines, sheet flexible machining centers, etc.
  • The frame adopts a pentahedron machining center for one-time processing, and the Wc67K Series Sheet Metal Bending Machine ensures the parallelism and verticality of each mounting surface.
  • The rack is sandblasted to remove rust and is sprayed with anti-rust paint.
  •  Adopt CAN bus technology; servo control X, Y axis.
  •  Built-in PLC; with machine tool motion control function.
  • Wc67K Series Sheet Metal Bending Machine can be freely matched according to the actual valve group timing.
  • Adjustable return distance.
  • Self-diagnosis and real-time alarm.
  • Reservation security interface.
  • All-steel welded structure, using vibration aging technology to eliminate internal stress, Wc67K Series Sheet Metal Bending Machine has high strength and good rigidity;
  • ZYMT hydraulic torsion bar;
  • Integrated hydraulic system, upper transmission, pressure control to adjust tonnage.
  •  Remove the foot switch and emergency stop button;
  •  Segmented overshoot, multi-V mode;
  •  Automatic control of back gauge and upper gate stroke, manual and digital adjustment;
  •  The upper punch adopts the oblique steel solid deflection compensation device;
  •  International standard electrical appliances and switches;
  • Can be equipped with various CNC controllers: Estun E21/E200P, Delem DA41, Maper HT072, Elgo P40, etc.;
  •  Control axis: upper ram (Y axis), rear gauge (X axis).

IMG 4243

Standard Components



  • Estun E200 control
  •  Wc67K Series Sheet Metal Bending Machine adopts Siemens motor
  •  German BOSCH-REXROTH hydraulic system
  •  American Sunny oil pump
  •  EMB fittings
  •  HIWIN ball screw & guide rail (back gauge)
  •  Schneider Electric
  •  Quick clamping
  •  Servo motor and driver
  •  Y, X axis
  • Multi-V mold
  • Foot pedal with emergency stop button
  •  Side and rear safety doors

Technical Parameters:

Model Normal Force Bending Length Poles Distance Throat
Depth Stroke Max. Opening Main Power Weight Dimension
(KN) (mm) (mm) (mm) (mm) (mm) (KW)
40T2200 400 2200 1850 220 100 320 5.5
40T2500 400 2500 1850 220 100 320 5.5
50T2200 500 2200 1850 220 100 320 5.5
50T2500 500 2500 1850 220 100 320 5.5
63T2500 630 2500 1900 260 120 320 5.5
63T3200 630 3200 2560 260 120 320 5.5
80T2500 800 2500 1990 320 120 320 7.5
80T3200 800 3200 2560 320 120 350 7.5
80T4000 800 4000 3000 320 120 350 7.5
100T2500 1000 2500 2020 320 150 400 7.5
100T3200 1000 3200 2600 320 150 400 7.5
100T4000 1000 4000 3000 320 150 400 7.5
125T2500 1250 2500 2020 320 150 400 11
125T3200 1250 3200 2580 320 150 400 11
125T4000 1250 4000 3000 320 150 400 11
160T3200 1600 3200 2600 320 200 460 11
160T4000 1600 4000 3000 320 200 460 11
160T5000 1600 5000 4000 320 200 460 11
160T6000 1600 6000 5000 320 200 460 11
200T3200 2000 3200 2500 400 200 460 11
200T4000 2000 4000 3000 400 200 460 11
200T5000 2000 5000 4000 400 200 460 11
200T6000 2000 6000 5000 400 200 460 11
250T3200 2500 3200 2500 400 250 530 18.5
250T4000 2500 4000 3000 400 250 530 18.5
250T5000 2500 5000 4000 400 250 530 18.5
250T6000 2500 6000 5000 400 250 530 18.5
300T3200 3000 3200 2530 400 250 530 22
300T4000 3000 4000 3000 400 250 530 22
300T5000 3000 5000 4000 400 250 530 22
300T6000 3000 6000 5000 400 250 530 22
400T4000 4000 4000 3000 400 250 530 30
400T5000 4000 5000 4000 400 250 530 30
400T6000 4000 6000 5000 400 250 530 30
500T4000 5000 4000 3000 400 250 590 37
500T5000 5000 5000 4000 400 250 590 37
500T6000 5000 6000 5000 400 320 590 37
600T4000 6000 4000 3000 400 320 590 45
600T6000 6000 6000 5000 400 320 590 45





IMG 4249

Controller Function



  • Backgauge and block control
  • Bus Mode Control Servo System
  • stock counter
  • Program memory up to 40 programs with up to 25 steps per program
  • one side positioning
  • retract function
  • One-click backup/restore parameters



Torque Synchronization



  • Rugged steel welded construction for stress relief
  • Stable and reliable hydraulic top drive
  • The torsion bar maintains the parallelism between the two cylinders

IMG 4250

Why Choose XIYUAN Wc67K Series Sheet Metal Bending Machine ?



  • Faster speed and higher accuracy to perform X and Y axis well.
  • Electrical System Servo Motors and Servo Drives.
  • Standard top punches and multi-V counters for a variety of applications. You can choose more CNC bending tooling according to your actual use.
  • The mold is made of 42CrMo steel, and the hardness can reach 42 degrees after heat treatment to ensure the service life of the mold.
  • Quick Fixtures will help you replace punches easily and in a time-saving manner.High-precision back gauge device, Taiwan Shangyin ball screw, linear guide.
  • The rear gauge adopts the horizontal shell installation structure, with high reliability, single shell double linear guide, high-precision X-axis drive.
  • Scientific cost control-higher production and lower price.
  • Professional and timely technical support–engineers from abroad.
  • Our team has experience in all fields relating to product design and development. If you have any needs for your new product, we are here to offer our support.
  • The effective purchasing and fast production departments enable us to delivery the machines in time.
