125ton/5000 Mm Sheet Metal Bending Press Brake Machine With Ct8 Wc67K Series

WC67K 125T/5000 Mm Sheet Metal Bending Press Brake Machine With CT8 adopts all-steel welded structure, adopts vibration aging technology to eliminate internal stress, has high strength and good rigidity. It also features torsion bars with hydraulics, integrated hydraulics and pressure controls for adjusting tonnage.



Product Description

Brand: Anhui Xiyuan Machine       Origin: China
Shipping time: 30 days       Availability: 30 set/month

We manufacture the innovative 125ton/5000 Mm Sheet Metal Bending Press Brake Machine With Ct8 Wc67K Series, which offers high productivity and superior cutting quality at an affordable price. With a focus on innovation, customization, and excellent service, xiyuan has a bending machine to suit any project.

Sheet Metal Bending Press Brake Machine is an essential piece of equipment that helps manufacturers to make molded parts, including brackets, channels, structural forms, enclosures, piping systems, and custom projects. Bending machines can be found in every manufacturing shop and in many machine shops. Their versatility allows them to be used in many applications, including molding. They help manufacturers and operators to bend metal sheets and make objects of different shapes and forms.

125ton/5000 Mm Sheet Metal Bending Press Brake Machine Description:

  • Adopting an all-steel welded structure, 125ton/5000 Mm Sheet Metal Bending Press Brake Machine has sufficient strength and rigidity.
  • Hydraulic drive. The cylinders at both ends of the machine tool are placed on the slider to directly drive the sliding work.
  • The slider synchronization mechanism of 125ton/5000 Mm Sheet Metal Bending Press Brake Machine adopts torsional shaft forced synchronization.
  • Adopt a mechanical stop structure, stable and reliable.
  • The slider stroke can be quickly adjusted manually, and the counter is displayed.
  • Oblique wedge deflection compensation mechanism, 125ton/5000 Mm Sheet Metal Bending Press Brake Machine ensures higher bending accuracy.



 Sheet Metal Bending Press Brake Machine Features:

  • Direct angle programming, with angle compensation function.
  • The real-time detection feedback of the grating scale, copy correction, full closed-loop control, rear gear, and slider dead positioning accuracy is ±0.02mm.
  • The upper mold adopts a quick mold clamping device, and the lower mold adopts a wedge deformation compensation mechanism.
  • With a multi-step programming function, Sheet Metal Bending Press Brake Machine can realize multi-step automatic operation, complete multi-step parts processing at one time, and improve production efficiency.
  • Sheet Metal Bending Press Brake Machine can choose an imported hydraulic system with stable performance and compact structure according to user requirements. The rear gear can be driven by a ball screw and synchronous belt.

wc67k 125t5000 mm sheet metal bending press brake machine with



Main features Of  WC67K 125T/5000mm Sheet Metal Bending Machine with CT8



  • Large, vivid, high-contrast full touchscreen.
  • The page is concise, the display is clear, and the buttons are large.
  •  Online help and warning pop-ups
  • Available in multiple languages.
  • Various bending functions according to the material are automatically calculated.
  • The bending sequence and program can be memorized.
  •  Angle, pressure and crown management.
  • All-steel welded structure, large, vivid, high-contrast full touch screen.
  • The page is concise, the display is clear, and the buttons are large.
  • X, Y axis intelligent positioning
  • Manual adjustment is possible
  •  No time relay
  •  Online help and warning pop-ups
  •  Available in multiple languages.
  • Various bending functions according to the material are automatically calculated.
  •  The bending sequence and program can be memorized.
  •  Angle, pressure and crown management. Adopt vibration aging technology to eliminate internal stress, high strength and good rigidity;
  • Torsion bar with hydraulic device;
  •  Integrated hydraulic system, upper transmission, pressure control to adjust tonnage;
  •  Remove the foot switch and emergency stop button;
  •  Segmented overshoot, multi-V mode;
  • Automatic control of back gauge and upper gate stroke, manual and digital adjustment;
  • The upper punch adopts the oblique steel solid deflection compensation device;
  •  International standard electrical appliances and switches;
  •  Can be equipped with various CNC controllers: Estun E21/E200P, Delem DA41, Maper HT072, Elgo P40, etc.;
  • Control axis: upper ram (Y axis), rear gauge (X axis).



wc67k 125t5000 mm sheet metal bending press brake machine with 5

Standard components



  • Estun E200 control
  •  Siemens motor
  •  German BOSCH-REXROTH hydraulic system
  • American Sunny oil pump
  •  EMB fittings
  •  HIWIN ball screw & guide rail (back gauge)
  • Schneider Electric
  • Quick clamping
  • Servo motor and driver
  •  Y, X axis
  • Multi-V mold
  • Foot pedal with emergency stop button
  •  Side and rear safety doors



Main Motor

Schneider Electric components make the WC67K 125T/5000mm Sheet Metal Bending Machine with CT8 perform well even without electricity

Oil Pump

Amazing low noise, made of high-strength cast iron, unique internal noise reduction design,Low sensitivity to oil contamination and long service life



Hydraulic System

Standard top punches and multi-V counters for a variety of applications. More press brake tools can be selected according to your actual use.



wc67k 125t5000 mm sheet metal bending press brake machine with 4



Technical Parameter:

Model Normal Force Bending Length Poles Distance Throat Stroke Max. Opening Main Power Weight Dimension
Depth
(KN) (mm) (mm) (mm) (mm) (mm) (KW) (KG) LxWxH(mm)
40T2200 400 2200 1850 220 100 320 5.5 2750 2200x1200x1910
40T2500 400 2500 1850 220 100 320 5.5 3000 2500x1200x1910
50T2200 500 2200 1850 220 100 320 5.5 2950 2200x1200x1910
50T2500 500 2500 1850 220 100 320 5.5 3400 2500x1200x2000
63T2500 630 2500 1900 260 120 320 5.5 4000 2500x1300x2210
63T3200 630 3200 2560 260 120 320 5.5 4800 3200x1300x2210
80T2500 800 2500 1990 320 120 320 7.5 5700 2500x1400x2300
80T3200 800 3200 2560 320 120 350 7.5 6020 3200x1500x2300
80T4000 800 4000 3000 320 120 350 7.5 7000 4000x1500x2400
100T2500 1000 2500 2020 320 150 400 7.5 6000 2500x1600x2400
100T3200 1000 3200 2600 320 150 400 7.5 6800 3200x1600x2600
100T4000 1000 4000 3000 320 150 400 7.5 8400 4000x1600x2500
125T2500 1250 2500 2020 320 150 400 11 6500 2500x1600x2400
125T3200 1250 3200 2580 320 150 400 11 7200 3200x1600x2600
125T4000 1250 4000 3000 320 150 400 11 8800 4000x1600x2700
160T3200 1600 3200 2600 320 200 460 11 10500 3200x1700x2700
160T4000 1600 4000 3000 320 200 460 11 11500 4000x1700x2800
160T5000 1600 5000 4000 320 200 460 11 14000 5000x1900x3100
160T6000 1600 6000 5000 320 200 460 11 19500 6300x1900x3200
200T3200 2000 3200 2500 400 200 460 11 12500 3200x1950x2800
200T4000 2000 4000 3000 400 200 460 11 13600 4000x1950x2800
200T5000 2000 5000 4000 400 200 460 11 14500 5000x1950x3100
200T6000 2000 6000 5000 400 200 460 11 21000 6000x1950x3300
250T3200 2500 3200 2500 400 250 530 18.5 19000 3200x2000x3200
250T4000 2500 4000 3000 400 250 530 18.5 20200 4000x2000x3400
250T5000 2500 5000 4000 400 250 530 18.5 23500 5000x2000x3450
250T6000 2500 6000 5000 400 250 530 18.5 27500 6000x2000x3450
300T3200 3000 3200 2530 400 250 530 22 20500 3200x2000x3450
300T4000 3000 4000 3000 400 250 530 22 22500 4000x2000x3450
300T5000 3000 5000 4000 400 250 530 22 25000 5000x2000x3450
300T6000 3000 6000 5000 400 250 530 22 30000 6000x2000x3450
400T4000 4000 4000 3000 400 250 530 30 25000 4000x2180x3500
400T5000 4000 5000 4000 400 250 530 30 29000 5000x2180x3500
400T6000 4000 6000 5000 400 250 530 30 35000 6000x2180x3800
500T4000 5000 4000 3000 400 250 590 37 35000 4000x2580x3500
500T5000 5000 5000 4000 400 250 590 37 44000 5050x3500x3700
500T6000 5000 6000 5000 400 320 590 37 55000 6050x3500x3700
600T4000 6000 4000 3000 400 320 590 45 45000 4050x4500x3700
600T6000 6000 6000 5000 400 320 590 45 60000 6050x4500x3700

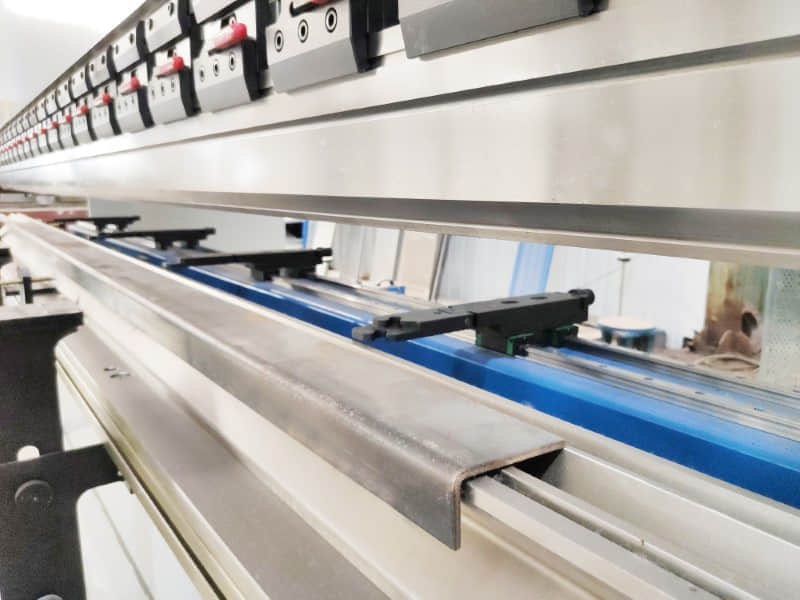

wc67k 125t5000 mm sheet metal bending press brake machine with 3

Company Profile

 Maanshan Xiyuan Machinery Technology Co., Ltd. is located in Maanshan City, Anhui Province. We specialize in R&D, production and sales of metalworking machine tools, including bending, cutting, shearing, grooving and punching. We look forward to cooperating with end users and distributors with our good quality, service and price. Our brand is named Xiyuan, we also welcome OEM, ODM orders. Let us be your business support and you will have no problems with machine delivery operation and installation. We guarantee full assistance and guidance.

milling cutters g4d4896a8d 640

FAQ about the company

Ma’anshan Xiyuan Machinery Technology Co., Ltd is a machine tool manufacturing, bending mold, and mechanical cutting production as one of the production bases.
The company is located in the southeast gateway of Anhui Province, next to Nanjing Lukou Airport, in the developed Yangtze River Delta area, with well-developed transportation and fast transportation.

We have standard product for shearing machine/punching machine/Press brake/laser cutting machine , we will reply you quickly with the quotation for such kind of product. We also focus on the customized and both developed product,  the quotation will be sent after mutual discussion for detailed requirement.

You can get in touch with us through the form on the page or contact information (tel:+ 86 18298207106 mail:JackLei@WDXIYUAN.email.cn). We will respond to your questions as soon as we see your message.

When you need to modify your order, please communicate with our sales staff to confirm your latest needs and draw up a new contract based on your needs. We will produce products according to your needs.

When you need to modify your order, please communicate with our sales staff to confirm your latest needs and draw up a new contract based on your needs. We will produce products according to your needs.

The company is located in the southeast gateway of Anhui Province, close to Nanjing Lukou Airport, and is located in the developed Yangtze River Delta region, with well-developed and fast traffic. Due to the particularity of the product, we generally choose to ship by sea. If you have special needs, you can communicate with us.

Before delivery, we will send you the pictures and videos for you to check the machine quality.And also you can arrange for quality checking by yourself or by your contacts in China.
