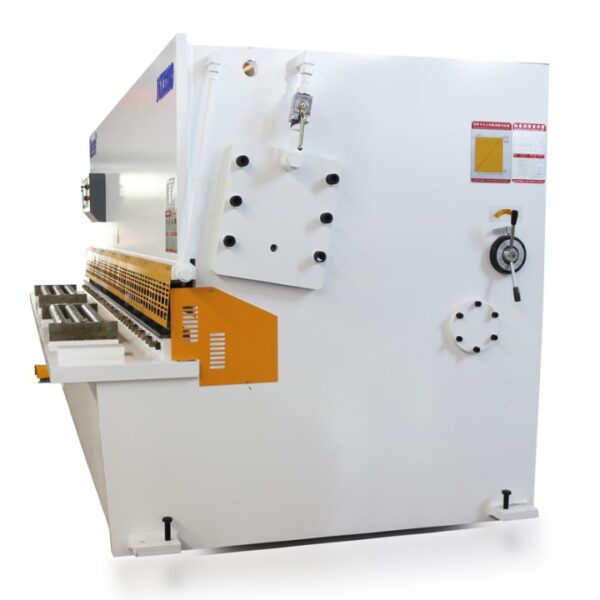

16x3200 Hydraulic Guillotine Shearing Machine With E21S Qc12K Series

The QC12K 16x3200 Hydraulic Swing Beam Cutting Machine With E21S features a fully EU streamlined design, a stress relief process for welding robots and equipment for single and annealing treatments.

Request A Quote

Product Description

Brand: Anhui Xiyuan Machine       Origin: China
Shipping time: 30 days       Availability: 30 set/month

 QC12K 16x3200 Hydraulic Guillotine Shearing Machine with E21S Product Highlights



  •  The QC12K 16x3200 Hydraulic Guillotine Shearing MachineWith E21S features a fully EU streamlined design, a stress relief process for welding robots and equipment for single and annealing treatments.
  •  With integrated hydraulic system, it is more reliable and easier to maintain. and the hydraulic system of Bosch Rexroth, Germany
  • QC12K 16x3200 Hydraulic Guillotine Shearing Machine With E21S, which produces a variety of cutting length and capacity options.
  • The distance of the back gauge is adjusted by the motor, and the adjustment is displayed by the E21S of the Delta inverter.
  •  Equipped with illuminated alignment for alignment when cutting. The stroke of the tool beam can be adjusted steplessly.
  •  Safety fences and electric interlocks are designed for the machine to ensure safe operation in compliance with CE regulations.



QC12K 16x3200 Hydraulic Guillotine Shearing Machine With E21S Standard Equipment



  • Eston E21S CNC system
  • Powered Back guage X-axis
  • DELTA Inverter Control Backward Guarantee
  • HIWIN ball screw and polished rod with 0,05mm accuracy Straight arm and front support arm
  •  German Bosch Rexroth Hydraulics
  • German EMB oil pipe joint
  •  German Siemens main motor
  •  Telemecanique Schneider Electrics
  •  Hydraulic and electrical overload protection
  •  The top insert has two cutting edges and the bottom insert has four cutting edges. (6CrW2Si)



QC12K 16x3200 Hydraulic swing beam shear With E21S Safety Equipment



  •  EN 12622:2009+A1:2013
  • EN ISO 12100:2010
  • N 60204-1:2006+A1:2009
  • Front finger protection (safety light curtain)
  • Korea Kacon foot switch (safety level 4)
  •  CE compliant back metal safety fence
  • Safety relay with monitoring foot switch and safety protection



Estun E21S CNC system



  •  Back gauge control
  • Control of general-purpose AC motors and inverters
  •  Smart positioning
  • Dual programmable digital outputs
  •  Inventory counter
  •  Program memory for up to 40 programs Up to 25 steps per program
  •  One side positioning
  • Retract function
  •  One-click backup/restore parameters



Main technical parameters of QC12K 16x3200 Hydraulic Guillotine Shearing Machine With E21S



Shearing Capability(mm) Number of Stroke (min-1) Back Gauge (mm) Shearing Angle(°) Throat Depth (mm) Motor Power (KW) Net Weight (kg) Dimension (LxWxH)(mm)
4x2000 16-25 20-600 0.5-2.0 100 4 3200 2750x1500x1600
4x2500 16-25 20-600 0.5-2.0 100 5.5 4000 3300x1500x1700
4x3200 16-25 20-600 0.5-2.0 100 5.5 6000 4000x1600x1900
4x4000 16-25 20-600 0.5-2.0 100 7.5 7600 4800x1650x2000
6x2500 10-25 20-600 0.5-2.0 100 7.5 5800 3200x1650x2000
6x3200 10-25 20-600 0.5-2.0 100 7.5 7000 3900x1650x2000
6x4000 10-25 20-600 0.5-2.0 100 7.5 9000 4750x1800x2200
6x5000 8-20 20-900 0.5-1.5 100 7.5 13000 5730x2250x2210
6x6000 8-20 20-900 0.5-1.5 100 11 16000 6730x2250x2300
6x9000 4-6 20-900 0.5-2.0 100 11 38000 9800x2700x2660
8x2500 10-25 20-600 0.5-2.0 100 11 6000 3200x1700x2280
8x3200 10-25 20-600 0.5-2.0 100 11 8300 3900x1750x2280
8x4000 10-25 20-600 0.5-2.0 100 11 9500 4750x1800x2200
10x2500 10-25 20-600 0.5-2.0 100 15 8500 3200x1800x2200
10x3200 10-25 20-600 0.5-2.0 100 15 9500 3900x1850x2200
10x4000 10-25 20-600 0.5-2.0 100 15 11000 4800x1900x2280
12x2500 6-20 20-900 0.5-2.5 250 18.5 10500 3710x2200x2200
12x3200 6-20 20-900 0.5-2.5 250 18.5 12000 3900x2200x2200
12x4000 6-20 20-900 0.5-2.5 250 18.5 15800 4850x2280x2450
16x2500 5-15 20-900 0.5-2.5 250 22 12500 3400x2280x2280
16x3200 5-15 20-900 0.5-2.5 250 22 14500 4150x2280x2280
16x4000 5-15 20-900 0.5-2.5 250 22 17800 4850x2280x2450
20x2500 5-15 20-900 0.5-3.0 250 30 13000 3200x2855x2200
20x3200 5-15 20-900 0.5-3.0 250 30 16100 3900x2855x2300
20x4000 4-15 20-900 0.5-3.0 250 37 23000 4760x2855x2420
25x2500 4-15 20-900 0.5-3.5 250 37 22700 3200x2900x2500
25x3200 4-15 20-900 0.5-3.5 250 37 27200 3900x2900x2700
25x4000 4-15 20-900 0.5-3.5 250 45 31500 4700x2900x2900
30x2500 4-10 20-1000 1.0-3.5 250 30 22700 3400x2900x2700
30x3200 3-10 20-1000 1.0-3.5 250 37 27200 4200x2900x3200
