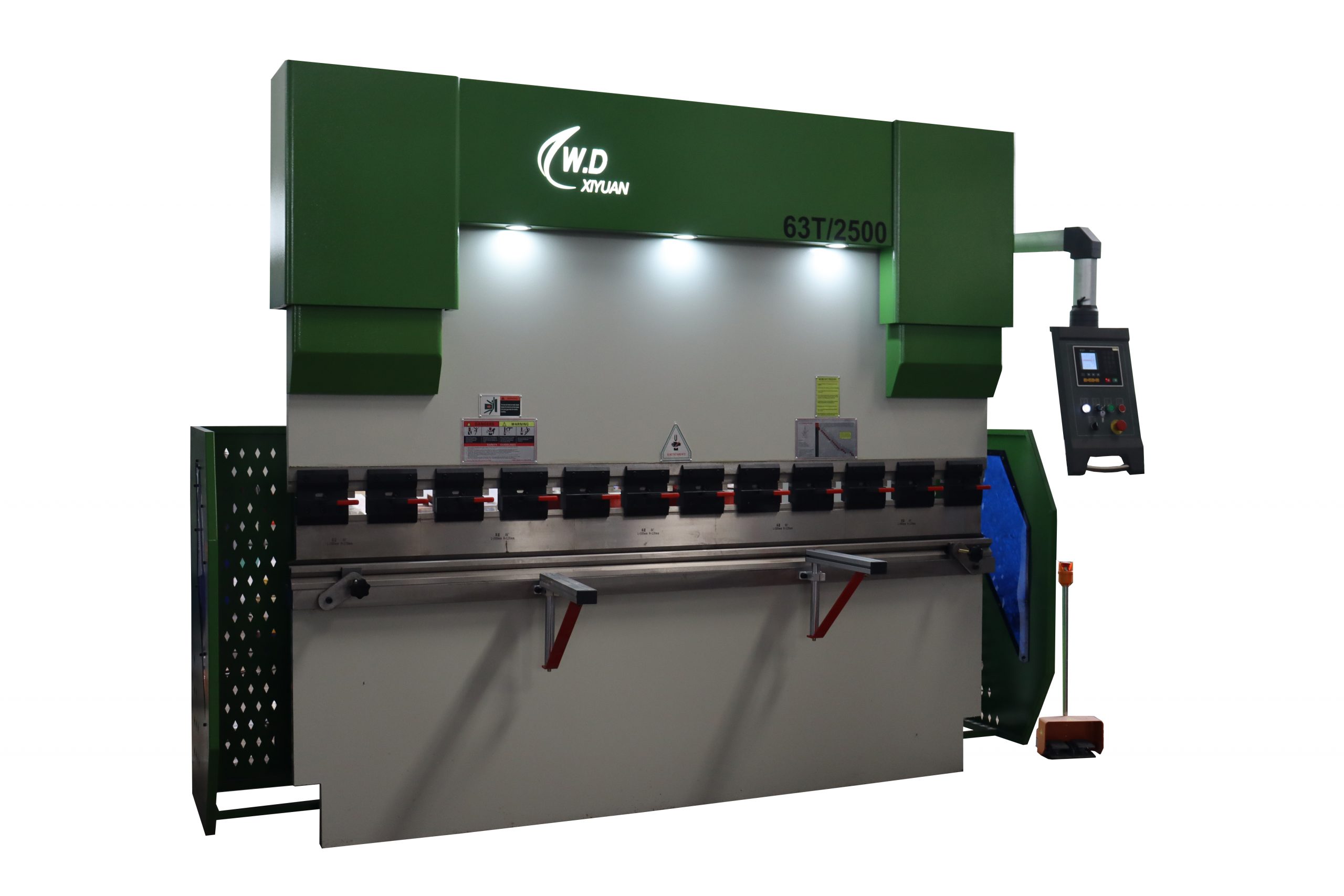

WC67K 63T/2500mm 带E21控制器的折弯机

Attribute:

Brand: xiyuan

Origin: China

Delivery time: 30 days

Supply capacity: 30 set/month

产品描述

品牌:安徽西元机械 产地:中国
运输时间:30 天 可用性:30 套/月

Product Highlights

CNC hydraulic bending machine is a kind of equipment widely used in metal processing industry, it realizes the precise bending and forming of metal materials by controlling the cooperative work of hydraulic system and CNC system.

The CNC hydraulic bending machine realizes the bending of metal materials through the force generated by the hydraulic system.

In the operation process, the metal material is placed on the work table of the machine, and then the required parameters are input through the numerical control system, including the bending Angle, bending radius, etc.

The hydraulic system will control the piston movement of the cylinder according to these parameters, thereby exerting force to bend the metal material.

By precisely controlling the pressure and speed of the hydraulic system, the CNC hydraulic bending machine can achieve high precision and complex shape bending processing

It can handle various metal materials, including steel plates, aluminum plates, copper plates, etc., for the bending of parts, components and products.

Especially in the automobile manufacturing, machinery manufacturing, ship construction and other fields, CNC hydraulic bending machine has played an important role.

It can not only improve production efficiency, reduce costs, but also ensure the accuracy and quality of products.

主要特点

The whole machine adopts all-steel welded structure, with sufficient strength and rigidity; The machine tool is designed with ANSYS software to ensure the reliability and accuracy of the press brake.

⚫ The motors for Back-gauge and ram stroke are controlled by inverter, which can achieve high positioning accuracy of the Back-gauge and ram by changing the frequency and voltage of

motor.

⚫ X axis (Back-gauge) and Y axis ( Cylinder stroke) can be programmed by the controller, which can make the bending job easy.

⚫ Side and rear metal safety guard meets European safety standard.

⚫ Hydraulic overload can be protected by overflow valve, System pressure can be regulated by pressure switch easily.

⚫ Foot switch with emergency button can stop the machine immediately when accident happens.

IMG 4316



IMG 4330



IMG 4318 1



IMG 4252



E21  controller

⚫ Back-gauge and block control

⚫ Control AC motor or inverter

⚫ Intelligent and unilateral positioning

⚫ Work-piece counting function

⚫ Holding/decompression time setting

⚫ 40 programs stored, 25 steps per program

⚫ One key back-up/restore of parameters

⚫ Unit for mm/inch

⚫ Language for Chinese/English

IMG 4255

为什么选择液压?

有竞争力的价格:科学的成本控制——更高的产量和更低的价格。

Technical Support:Professional and timely technical support–engineers from abroad.

Design Service:Our team has experience in all fields relating to product design and development.  If you have any needs for your WC67K 63T/2500mm bending machin, we are here to offer our support.

交货:有效的采购和快速的生产部门使我们能够及时交付机器。



常问问题

  1. Are you WC67K 63T/2500mm bending machine with E21 contolrrer manufacturer or trading company?
    我们是 WC67K 63T/2500mm 折弯机 E21 contolrrer 制造商。



  1. What shall we do if don’t know how to operate yourWC67K 63T/2500mm bending machine with E21 contolrrer?
    We can dispatch our WC67K 63T/2500mm bending machine with E21 contolrrer engineers to your country and you can also send your engineers to our factory for learning operation.  Besides, there are detailed installation and operating instructions attached, it is very simple.  We have telephone and email support at 24 hours per day.



  1.  How about your WC67K 63T/2500mm bending machine with E21 contolrrer machine quality?
    Hydraulic company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard. Our WC67K 63T/2500mm bending machine with E21 contolrrer machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction
  1. What are your WC67K 63T/2500mm bending machine with E21 contolrrerpayment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on.  TT, 30% in advance, 70% balance before the shipment.



YouTube video

公司简介

 马鞍山西元机械科技有限公司位于安徽省马鞍山市。我们专注于金属加工机床的研发、生产和销售,包括折弯、切割、剪切、开槽和冲孔。我们期待以我们优良的品质、服务和价格与终端用户和经销商合作。我们的品牌名为西元,我们也欢迎OEM,ODM订单。让我们成为您的业务支持,您的机器交付操作和安装不会有任何问题。我们保证提供全面的帮助和指导。

铣刀 g4d4896a8d 640

关于公司的常见问题

马鞍山西元机械科技有限公司是一家以机床制造、折弯模具、机械切削生产为一体的生产基地。
公司位于安徽省东南门户,紧邻南京禄口机场,处于发达的长三角地区,交通发达,交通快捷。

我们有标准产品 剪板机/拳击机器/按刹车/激光切割机 ,我们会尽快回复您此类产品的报价单。我们也专注于定制和双方开发的产品,报价将在相互讨论后发送以获取详细要求。

您可以通过页面上的表格与我们取得联系或 接触 信息(电话:+ 86 18298207106 邮箱:[email protected])。我们会在看到您的留言后立即回复您的问题。

当您需要修改订单时,请与我们的销售人员沟通确认您的最新需求,并根据您的需求制定新的合同。我们将根据您的需要生产产品。

当您需要修改订单时,请与我们的销售人员沟通确认您的最新需求,并根据您的需求制定新的合同。我们将根据您的需要生产产品。

公司位于安徽省东南门户,紧邻南京禄口机场,地处发达的长三角地区,交通发达,交通快捷。由于产品的特殊性,我们一般选择海运。如果您有特殊需求,可以与我们沟通。

发货前,我们会将图片和视频发送给您,以供您检查机器质量。您也可以自己安排质量检查或由您在中国的联系人进行质量检查。
