4x3200 数控液压摆式剪板机 E21S QC11K 系列

4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series ,with hydraulic transmission and electrical overload protection, safe and reliable. The blade gap is provided with a quick adjustment mechanism, which is convenient and quick to adjust. We specialize in the production of sheet metal machines, CNC bending machines, hydraulic shearing machines, V-grooving machines, laser cutting machines, etc.

产品描述

品牌:安徽西元机械 产地:中国
运输时间:30 天 可用性:30 套/月

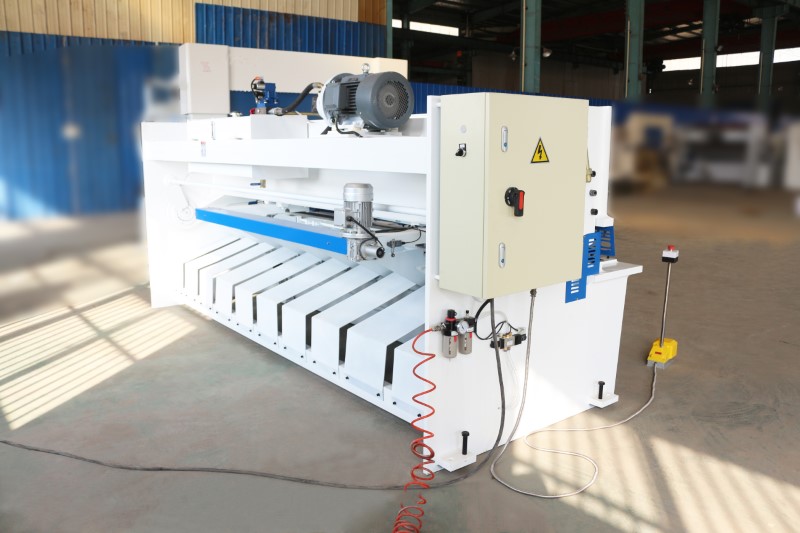

 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series Structure

1.框架

摆式剪板机是一种采用机架结构设计、采用坚固的焊接技术构造的剪切设备。该机器由位于左侧的两个气缸和相邻的立柱组成,在切割过程中发挥着至关重要的作用。

剪板机的主要部件是修刀梁,置于工作台上。该横梁负责固定和引导切削刀具,确保精确、准确的切削。工作台允许对底梁进行微调,使用户能够根据自己的要求微调切割过程。

为了在切割操作过程中促进板材的移动,在工作台上放置了小球。这些球充当运输机构,使板材能够在表面上平滑滑动,减少摩擦并确保高效切割。

操作摆式剪板机的过程非常简单。用户需要将待切割的板材放置在工作台上。然后启动切削刀具,修刀梁在气缸和齿条结构的引导下开始运动。当光束移动时,切割工具会切穿板材,从而实现精确、干净的切割。



2.叶片顶梁



本机钢板焊接而成, 摆梁剪板机 保证良好的刚性。左右气缸以偏心套为支点驱动。蓄能器行程垂直形成曲线后,反复摆动完成剪板。



3.压版装置



The Swing Beam Shearing Machine consists of several platen cylinders mounted on the front support plate of the frame. After the press cylinder is filled with oil, the press head will overcome the tension of the spring and press down. Press the plate tightly. After shearing, it returns to its original position under the stress of the spring. The swing beam shear machine will increase the pressure plate’s pressure as the thickness of the shear plate increases.



4.前后规



前规:放置在工作台的表面。标尺指示值。您可以通过调整移动滑枕来获得指示器。使用前规切割薄板更方便。

The rear gauge is mounted on the top blade beam. It moves up and down with the blade beam at the top. A 0.55kw motor drives the adjustment of the back gauge. Reduced gear speed and rod drive rear gauge. Press the adjustment button “+” (or “-“) of the swing beam shear machine to move the dashboard forward or backward.



 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series Product Highlights



  • 摆梁剪板机采用整体焊接框架结构,机床刚性好。
  • 框架采用大型数控镗铣床加工,数控回转液压剪梁机可保证剪切精度和质量。
  • 摆梁剪板机刃口间隙调整快速、方便、准确。
  • 剪切行程无级可调,提高剪切效率。
  • 氮气缸回位,数控液压摆梁剪板机工作平稳可靠。
  • 标配GSI剪板机专用数控系统,精度高,操作简单。
  • 逆止器采用国际知名滚珠丝杆,直线导轨结构,伺服电机驱动,数控液压摆梁剪板机定位准确可靠。
  • 球形进料台,方便用户进料和切割。
  • 前喂料杆配有前定位秤,适应用户不同的操作要求。
  • 数控液压摆梁剪板机提供灯光照明,便于剪线。
  • 可选气动后托盘和前自动送料台。
  • 主机配备 数控液压摆梁剪板机 剪板机专用数控系统。
  • 实时显示后齿轮的位置。
  • 多步编程功能,自动运行,逆止器连续定位,实现逆止器位置自动调节剪计数功能,实时显示剪断次数,停电时记忆逆止器位置、程序及参数。
  • 采用滚珠丝杆和直线导轨,保证定位精度,数控液压摆梁剪板机加工精度高。
  • 采用先进的液压集成箱体。
  • 串联油缸使蓄能器在机床剪切时回位平稳快速。
  • 我公司研制的数控液压摆梁剪板机采用矩形刀片,可使用四个刃口,使用寿命长。
  • 上刀架采用内倾式结构,便于数控液压摆梁剪板机下料,提高了板材的剪切精度。

Using steel plate welded structure, with hydraulic transmission and electrical overload protection, safe and reliable. The blade gap is provided with a quick adjustment mechanism, which is convenient and quick to adjust. We specialize in the production of sheet metal machines, CNC bending machines, hydraulic shearing machines, V-grooving machines, laser cutting machines, etc. QC12K 4×3200 CNC hydraulic swing beam shearing machine With E21S has been sold to Germany, UK, USA, Australia, Russia, Italy and other countries, and has been unanimously recognized by customers.



 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series Product Details



液压摆式剪板机采用平行油缸,使机床的油缸在切削时同步,剪切角不会发生变化。刀架行程可无级调节,电动后挡料可手动微调,后挡料大小及切割次数有数显装置。



 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series With E21S Key Features



  •  多步编程功能,后挡料自动运行,连续定位,后挡料自动精准调整
  • The back gauge adopts Taiwan’s silver ball screw to ensure the positioning accuracy of the back gauge and the processing accuracy is higher.
  •  Use safety fences to avoid accidents caused by operational mistakes, QC12K 4×3200 CNC hydraulic swing beam shearing machine With E21S can ensure worker safety.
  • 配有聚光装置,通过光线,有利于切割。
  • 切割计数功能,实现断电记忆切割次数、停止位置、程序及参数显示
  •  电箱设有开门断电保护装置,确保维修过程的安全
  • 刀片间隙调整由指示灯指示,调整方便快捷。



693fa432a018cdfa6b2fc03e04bb737

常问问题



1.Are you 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series manufacturer or trading company?



We are 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series manufacturer.



2.What shall we do if don’t know how to operate your 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series  ?



We can dispatch our QC12K 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

3.How about your QC12K 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S machine quality?



Hydraulic company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.



4.What are your 4×3200 CNC Hydraulic Swing Beam Shearing Machine With E21S QC11K Series payment terms?



我们支持 T/T、L/C、D/P、D/A、Western Union 等。 TT,30% 预付,70% 余额发货前。

af554f5b8a6ac38d237555bee929c13

公司简介

 马鞍山西元机械科技有限公司位于安徽省马鞍山市。我们专注于金属加工机床的研发、生产和销售,包括折弯、切割、剪切、开槽和冲孔。我们期待以我们优良的品质、服务和价格与终端用户和经销商合作。我们的品牌名为西元,我们也欢迎OEM,ODM订单。让我们成为您的业务支持,您的机器交付操作和安装不会有任何问题。我们保证提供全面的帮助和指导。

铣刀 g4d4896a8d 640

关于公司的常见问题

马鞍山西元机械科技有限公司是一家以机床制造、折弯模具、机械切削生产为一体的生产基地。
公司位于安徽省东南门户,紧邻南京禄口机场,处于发达的长三角地区,交通发达,交通快捷。

我们有标准产品 剪板机/拳击机器/按刹车/激光切割机 ,我们会尽快回复您此类产品的报价单。我们也专注于定制和双方开发的产品,报价将在相互讨论后发送以获取详细要求。

您可以通过页面上的表格与我们取得联系或 接触 信息(电话:+ 86 18298207106 邮箱:[email protected])。我们会在看到您的留言后立即回复您的问题。

当您需要修改订单时,请与我们的销售人员沟通确认您的最新需求,并根据您的需求制定新的合同。我们将根据您的需要生产产品。

当您需要修改订单时,请与我们的销售人员沟通确认您的最新需求,并根据您的需求制定新的合同。我们将根据您的需要生产产品。

公司位于安徽省东南门户,紧邻南京禄口机场,地处发达的长三角地区,交通发达,交通快捷。由于产品的特殊性,我们一般选择海运。如果您有特殊需求,可以与我们沟通。

发货前,我们会将图片和视频发送给您,以供您检查机器质量。您也可以自己安排质量检查或由您在中国的联系人进行质量检查。
