500W Fiber Laser Sheet metal cutting machine

500W Fiber laser Sheet metal cutting machine, simple and convenient operation and maintenance, high speed and high precision, can effectively improve production efficiency, change traditional production methods, and make rational use of plates.

Product Description

Brand: Anhui Xiyuan Machine       Origin: China
Shipping time: 30 days       Availability: 30 set/month

Introduction of 500W Fiber Laser Sheet metal cutting machine:

It breaks the traditional problems of slow manual and electric cutting speed and difficult typesetting and fully solves the issues of unattained efficiency and wasted materials. 500W Fiber Laser Sheet metal cutting machine has fast cutting speed and easy operation. Just input the graphics and dimensions to be cut into the computer. The 500W Fiber Laser Sheet metal cutting machine will miss the whole material into the finished product you need; there are no tools or die lasers to achieve non-contact processing; easy and fast.

  • Machine tool mainframe part: 500W Fiber Laser Sheet metal cutting machine,Mechanical parts that realize the movement of X, Y, and Z axes, including cutting work platforms.
  • Laser generator: a device that produces a laser light source.
  • External light path: refractive emitter used to guide the laser in the required direction.
  • CNC system: control the machine tool to realize the movement of X, Y and Z axes, and also control the output power of the sheet metal cutting machine.
  • Regulated power supply: connected between laser, CNC machine tool and power supply system.

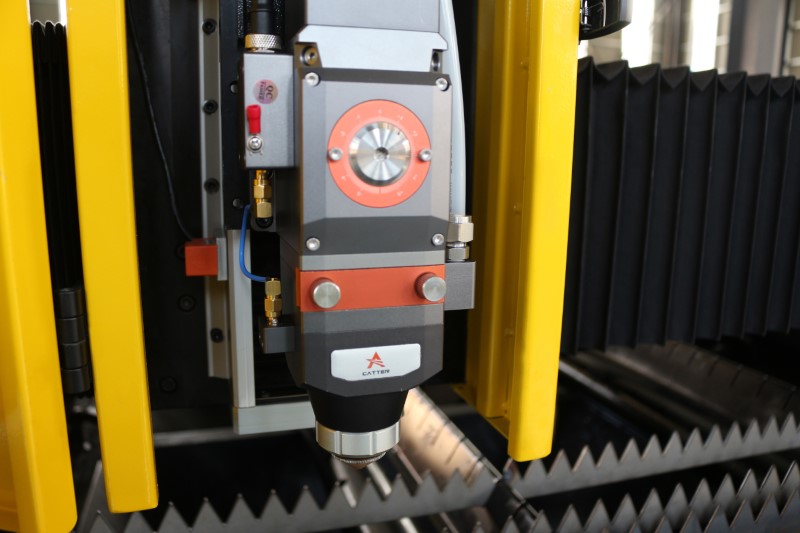

  • Cutting head: mainly includes a cavity, focusing lens holder, focusing lens, capacitive sensor and auxiliary gas nozzle and other objects. The laser head is an important component of the fibre metal cutting machine, which generates laser beam energy for cutting.

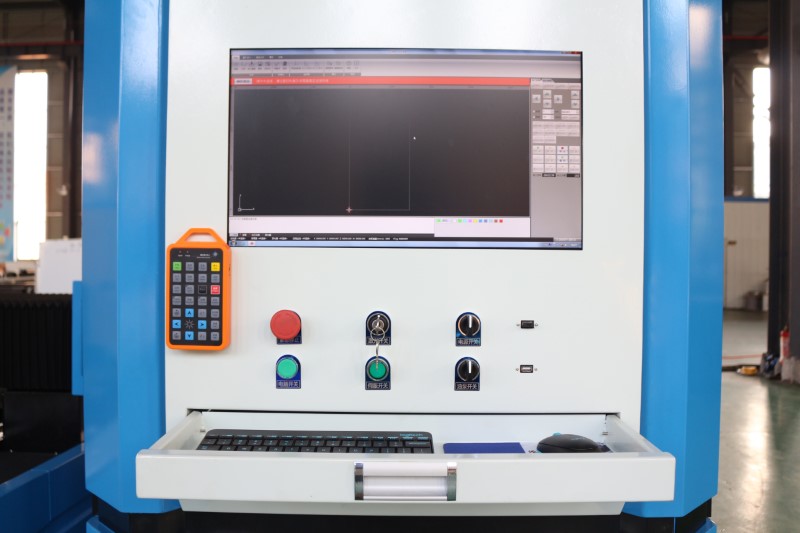

  • Operation table: It is used to control the working process of the whole cutting device of the sheet metal cutting machine.
  • Chiller: used to cool the laser generator.
  • Gas cylinder: including laser cutting machine working medium cylinder and auxiliary cylinder, used to supplement the industrial gas of laser oscillation and additional gas for the cutting head.
  • Air compressors and air receivers: provide and store compressed air.
  • Air-cooled dryer, filter: used to supply clean, dry air to the laser generator and beam path to keep the pathway and mirror working normally.
  • Exhaust dust collector: extract the soot and dust generated during processing, and filter it to make the exhaust gas discharge meet environmental protection standards.
  • Slag remover: remove corner residue and waste generated during processing.

Sheet metal cutting machine - high speed laser cutting

500W fiber laser sheet metal cutting machine has the advantages of fast cutting speed, good cutting quality, high cutting precision, and convenient operation. Compared with traditional sheet metal processing methods, sheet metal cutting machine has high new product development efficiency without mold, fast programming, fast cutting speed, narrow cutting seam, high incision finish, non-contact cutting plate without deformation and no scratch.



Brief description of sheet metal cutting machine

  • Hollow structure machine tools
  • Quick-4.0 intelligent cutting system
  • Quick series intelligent cutting head
  • Maximum acceleration: 2.0 G
  • Maximum linkage speed: 140m/min
  • Maximum power: 500W

The newly upgraded 500W fiber laser sheet metal cutting machine integrates the characteristics of high speed, high efficiency, high precision, high stability, high control, high convenience and efficiency, and is fully optimized and upgraded.

Sheet metal cutting machine is equipped with a number of patented technologies such as hollow structure machine tools, aviation aluminum beams, boneless workbenches, time-sharing, partitioned dust extraction structures, etc., to make cutting more efficient.

Sheet metal cutting machine adopts a new generation of Quick-4.0 intelligent cutting system, with more complete and intelligent functions, convenient and flexible operation, and configuration of Thunderlaser professional process database, convenient to use. With the optional industrial intelligent interface, intelligent remote cloud interface and operation diagnosis mode, the sheet metal cutting machine makes the production operation more convenient.



Product Highlights Of 500W Sheet Metal Fiber Laser Cutting Machine



  • The LX3015 series is designed for cutting sheet metal / sheet metal work.
  • Sheet Metal Fiber Laser Cutting Machine supports power range from 500W 1000W 1500W 2000W 3000W, up to 15kw.
  • Optional laser generator, RAYCUS, IPG, MAX, JPT, NLIGHT, etc.
  • The laser cutting head of Sheet Metal Fiber Laser Cutting Machine can support RAYTOOLS, AU3TECH, WSX, PRECITEC.
  • Reducer can choose Xinbao, Motovario.
  • Servo motor and driver can choose FUJI/YASKAWA.
  • The working area can choose 3015, 4015, 4020, 6025, 8025 or other optional.

Support customization, you can choose

  • COVER, more environmentally friendly, easier to clean.
  • ROTARY for pipe cutting, multifunctional cutting.
  • EXCHANGE TABLE, dual-platform work, improve production efficiency.



500w sheet metal fiber laser cutting machine



Features Of 500W Sheet Metal Fiber Laser Cutting Machine



  •  High precision, high speed, narrow slit, small heat affected zone, smooth cutting surface without burrs.
  •  Non-contact cutting, the laser cutting head will not contact the surface of the material and will not scratch the workpiece.
  • The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is small, and there is no mechanical deformation.
  • Flexible processing, can process any graphics, and can also cut profiles such as pipes.
  • The 500W Sheet Metal Fiber Laser Cutting Machine is suitable for a variety of materials, and can cut steel plates, stainless steel, aluminum alloy plates, cemented carbide and other materials of any hardness without deformation.

Product Highlights Of 500W Sheet Metal Fiber Laser Cutting Machine



 Main Technical Parameters Of 500W Sheet Metal Fiber Laser Cutting Machine



Model LX3015C LX3015F LX3015L
Laser wave length 1064nm
Transmission system Gear + rails

(we have standard brand,we can also produce as your requirements)

X.Y axis location accuracy ±0.01mm
X.Y axis repeat location accuracy ±0.01mm
X.Y axis max moving speed 110m/min 120m/min 120m/min
Max cutting speed 50m/min 70m/min 70m/min
Power 500w-2000w 2000w -6000w 3000w-12000w
Cutting thickness Detailed in the following cutting thickness
Working area 0913/2513

3015/4015/4020

3015/4015/4020

6015/6020/6025/8025

16030/20030
Application Material plate /sheet metalwork

Iron/Carbon Steel /Stainless Steel /Aluminum/ Copper and all kinds metal

Maanshan Hydraulic Machinery Technology Co., Ltd. is located in Maanshan City, Anhui Province. We specialize in R&D, production and sales of metalworking machine tools, including bending, cutting, shearing, grooving and punching. We look forward to cooperating with end users and distributors with our good quality, service and price. Our brand is named LONGBOW, we also welcome OEM, ODM orders. Let us be your business support and you won't have any problems with the delivery operation and installation of machines like the 500W Sheet Metal Fiber Laser Cutting Machine. We guarantee full assistance and guidance.



Patented workbench, high bearing capacity, anti-collapse

The sheet metal cutting machine patented worktable adopts boneless structure, and the upgraded worktable supports rack structure. The sheet metal cutting machine ensures the stable operation of the workbench, solves the defect of collapse deformation of the card board and the middle of the worktable in the past. The metal cutting machine worktable has higher carrying capacity.



aviation aluminum beam

Sheet metal cutting machine adopts professional finite metadata analysis, extrusion molding of aviation aluminum material, strong beam rigidity, light weight, small deformation resistance and good dynamic performance.



Quick intelligent cutting system

Intelligent visual control system, integrated nesting system, flexible and convenient modification methods, support the import of a variety of file formats, the laser power of the sheet metal cutting machine can be adjusted in real time, intelligent control of gas pressure, intelligent edge finding and positioning, intelligent perforation, fast cutting efficiency and high cutting precision.



The sheet metal cutting machine checks the main contents:

  1. The sheet metal cutting machine (it is recommended that the actual cutting height be between 0.8~1.2mm). If the precise cutting height is inaccurate, it needs to be calibrated.
  2. Check if the type and size of the cutting port are used incorrectly. If it is correct, check if the incision is damaged and the roundness is normal.
  3. For optical inspection, it is recommended to use a cutting port with a diameter of 1.0. The focus of the optical centre detection should be between -1 and 1. This makes the light spot small and easy to observe.
  4. Protective lenses Check whether the protective lenses are clean, water-free, oil-free and slag free. Sometimes the protective goggles fogged due to weather or cold air during paving.
  5. Focus Check if the focus is set correctly. If the sheet metal cutting machine cutting head is automatic focusing, use the mobile app to check if the focus is correct.
